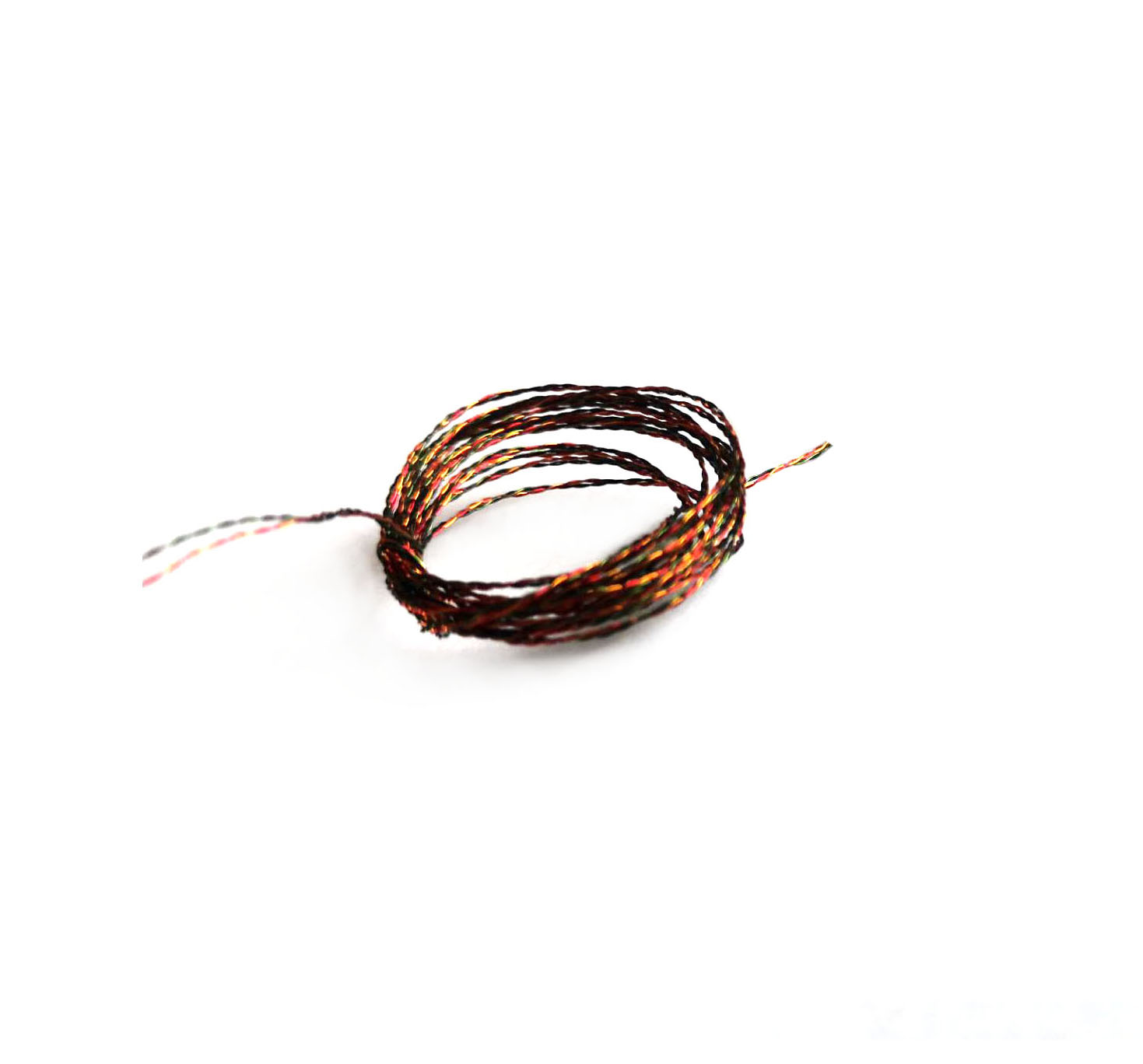

Four-color Low Temperature Wire
-
Model: JZM-32
Product Description:
4 twisted pair is 2 pairs (4 wires) of 32 or 36AWG phosphor bronze wire. Each pair contains 3.15 twists per centimeter (8 twists per inch), 2 pairs are coiled and 1.57 twists per centimeter (4 twists per inch). This wire is a good choice when the noise received by the diode sensor or sample from the induced current through the wire needs to be minimized. Use one pair for sensor excitation and the other for sensor output voltage to minimize electromagnet noise pickup.
Feature
• Phosphor copper wire
• Non-ferromagnetic
• 2 twisted pairs (4 wires), color coded
• Minimize noise
• PVA insulation (QT-36)
Specifications:
※Black, gold, red and green four colors;
※Kapton insulating layer;
※Single wire diameter 0.127mm;
※The thermal conductivity: 48W/(m*K) @293K;
※ Resistivity: 1.15E-7Ω*m@293K.
Note: the price is not allowed, the telephone communication shall prevail
